Home » Castors By Series » ABE50 Series » ABE50 Forged Precision Bearing Castors with DF Series Drop Forged Steel Wheels » ABE50-103S-DF-WFB

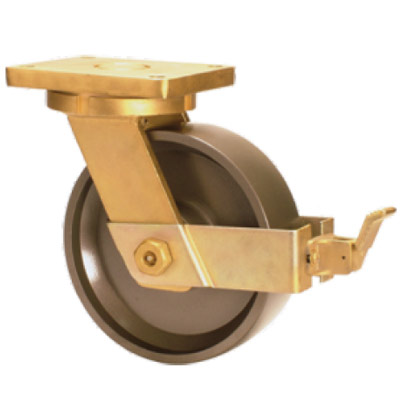

ABE50-103S-DF-WFB

4500

250

Alloy
Steel

Swivel
with
Wheel
Face
Brake

Brake

Muvtons Drop Forged Wheels are hot forged from Alloy Steels and can be used in the roughest of applications on the poorest of floors. these are virtually in-destructible within their capacity range .tread faces are fully machined for easy maneuverability - these wheels offer high abrasion and oil resistance . Wheel Bearing Options: Sealed precision ball bearings, tapered roller bearings or roller bearings.Temperature range:-100° C to +600° C.

Send Us Product Enquiry for a Quick Response

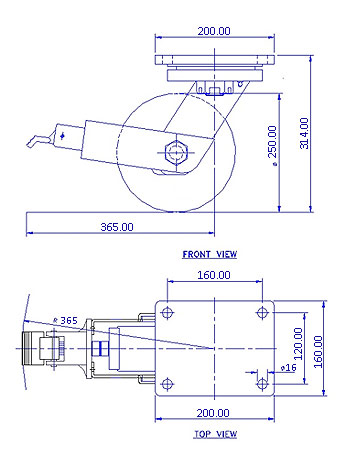

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

250

Tread Width(mm)

Load Capacity(kg)

4500

Wheel Bearing

Ball Bearing

Overall Height(mm)

314

Swivel Radius(mm)

205

Swivel Radius WFB(mm)

365

Top Plate(mm)

200 x 160

Bolt Hole Dia(mm)

160 x 120

Non Marking

Heat Resistant

Yes

Noise Reduction
