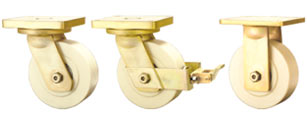

MCNY Series

Muvtons MCNY Wheels produced from high impact resistant cast polymide are the ultimate choice for extremely high loads where metalic wheels are not an option .these wheels posses very high abrasion resistance and offer low rolling resistance under extreme loads. Can be used in corrosive applications. Wheels Bearing Options : Sealed precision ball bearing or plain bore.temperature range:-30° C to +80° C.

Part No.	Wheel Dia (mm)	Tread Width (mm)	Hub Length (mm)	Bore (mm)	Type of Bearing	Load Capacity (Kgs)
MCNY-10055-BB25	100	55	60	25		1250
MCNY-12555-BB25	125	55	60	25		1400
MCNY-15055-BB30	150	55	60	30		2000
MCNY-15080-BB35	150	80	85	35		2750
MCNY-20055-BB35	200	55	60	35		2750
MCNY-20080-BB45	200	80	85	45		4500
MCNY-25065-BB45	250	65	70	45		5000
MCNY-25080-BB50	250	80	85	50		6000
MCNY-250100-BB70	250	100	108	70		8000
MCNY-30080-BB55	300	80	85	55		7000
MCNY-300100-BB70	300	100	108	70		9000
MCNY-40080-BB70	400	80	85	70		9000
MCNY-400100-BB70	400	100	108	70		11000
