Home » Wheels » SAS Series

SAS Series

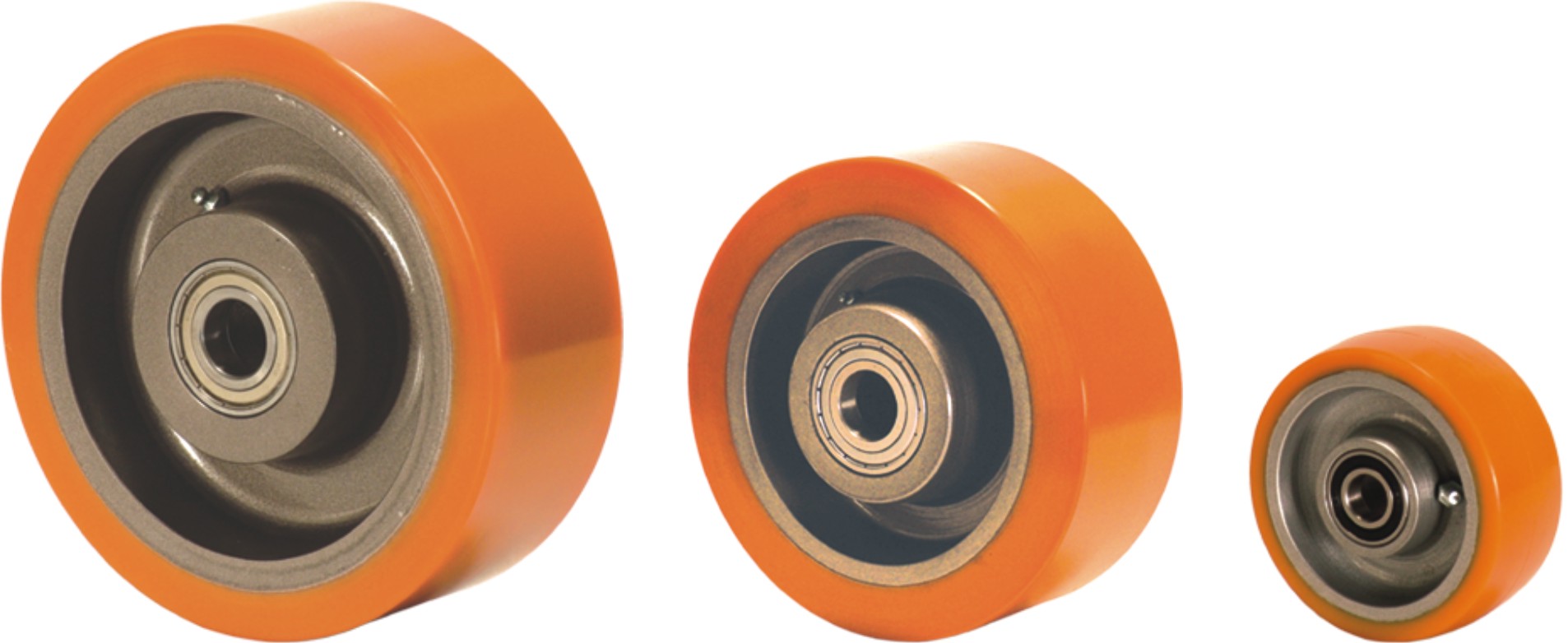

Muvtons premium polyurethane treaded wheels 93° ±3° Shore A, firmly bonded to precision machined cast iron cores offer low rolling resistance, smooth & noiseless running are non-marking and floor protective. These wheels possess high abrasion & cut resistance and are resistant to tearing. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings, color, light brown. Temperature range : -20°C to +85°C. Tread options: Anti static : Conductive wheels are available.

Part No.	Wheel Dia (mm)	Tread Width (mm)	Hub Length (mm)	Bore (mm)	Type of Bearing	Load Capacity (Kgs)
SAS-415-BB20	100	40	45	20		295
SAS-42-BB20	100	50	60	20		400
SAS-515-BB20	125	38	41	20		450
SAS-52-BB20	125	50	60	20		550
SAS-615-BB20	150	38	41	20		450
SAS-62-BB20	150	50	60	20		750
SAS-625-BB25	150	64	82	25		950
SAS-63-BB30	150	75	82	30		1050
SAS-82-BB20	200	50	60	20		1000
SAS-825-BB25	200	64	70	25		1200
SAS-83-BB30	200	75	82	30		1400
SAS-84-BB40	200	100	108	40		1800
SAS-102-BB20	250	50	60	20		1200
SAS-1025-BB25	250	64	70	25		1350
SAS-103-BB30	250	75	82	30		1800
SAS-104-BB40	250	100	108	40		2200
SAS-122-BB25	300	50	60	25		1400
SAS-1225-BB25	300	64	70	25		1600
SAS-123-BB30	300	75	82	30		2200
SAS-124-BB40	300	100	108	40		2800
SAS-163-BB30	400	75	82	30		2500
SAS-164-BB40	400	100	108	40		3500
SAS-183-BB35	450	75	82	35		3000
SAS-203-BB35	500	75	82	35		3200
