Home » Castors By Series » ABE50 Series » ABE50 Forged Precision Bearing Castors with SZS Series Soft Polyurethane Wheels » ABE50-123S-SZS

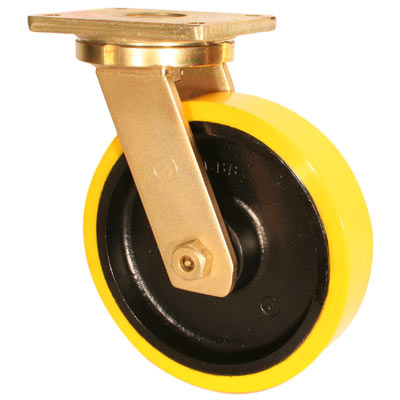

ABE50-123S-SZS

1450

300

Polyurethane

Swivel
Castor

none

Muvtons premium soft durometer polyurethane threaded wheels 83° ±3° Shore A, Firmly bonded to precision machined cast iron cores. These wheels have been designed to response to noise problems and allow loaded to be cushioned. The use of lively polyurethane materials allows these wheels to flex & roll over debris and obstacles without picking up objects. They are non marking and floor protective. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range; -20°C to +85°C. Thread options : Anti static : conductive wheels are available.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

83° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

300

Tread Width(mm)

Load Capacity(kg)

1450

Wheel Bearing

Ball Bearing

Overall Height(mm)

375

Swivel Radius(mm)

230

Top Plate(mm)

200 x 160

Bolt Hole Centers

160 x 120

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
