ABE50-163R-MCNY

Castor Selector

Castor Type

	Swivel		Swivel with Total Lock
	Rigid		Swivel with Wheel Face Brake

Option

With Brake

Without Brake

Is your Floor Epoxy Type? : Yes

Call us at :

+91.120.4646100-98

Mobile No. :

+(91)-9910267000

Fax :

+91.120.4646199

Mail us at :

sales@muvtons.net.in,help@muvtons.net.in

ABE50-163R-MCNY

ZOOM

5000

400

Cast
Polyamide

Rigid
Castor

none

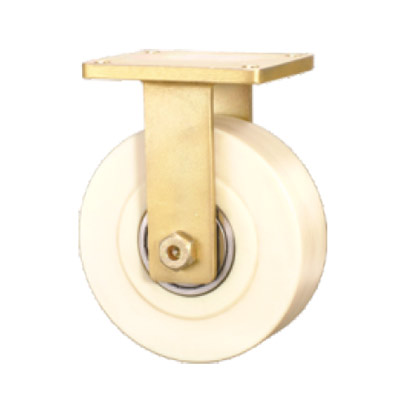

Muvtons MCNY wheels produced from high impact resistant cast polyamide are the ultimate choice for extremely high loads where metallic wheels are not an option . These wheels posses very high abrasion resistance and offer low rolling resistance under extreme loads. Can be used in corrosive applications. Wheels bearing options : sealed precision ball bearing or plain bore. Temperature range:-30° c to +80° c.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Cast Polyamide

Wheel Dia(mm)

400

Tread Width(mm)

Load Capacity(kg)

5000

Wheel Bearing

Ball Bearing

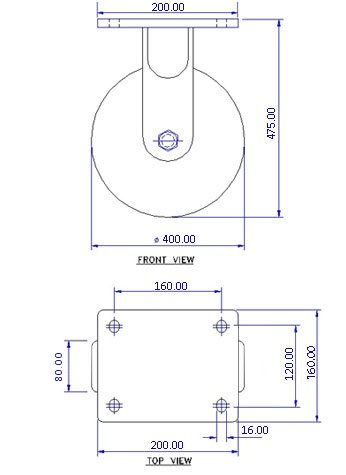

Overall Height(mm)

475

Top Plate(mm)

200 x 160

Bolt Hole Centers

160 x 120

Non Marking

Heat Resistant

Yes

Noise Reduction

Request a Catalogue

ABE50-163R-MCNY
