ABE50-63R-DF

Castor Selector

Castor Type

	Swivel		Swivel with Total Lock
	Rigid		Swivel with Wheel Face Brake

Option

With Brake

Without Brake

Is your Floor Epoxy Type? : Yes

Call us at :

+91.120.4646100-98

Mobile No. :

+(91)-9910267000

Fax :

+91.120.4646199

Mail us at :

sales@muvtons.net.in,help@muvtons.net.in

ABE50-63R-DF

ZOOM

3000

150

Alloy
Steel

Rigid
Castor

none

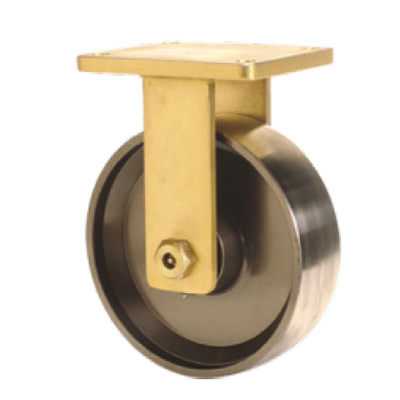

Muvtons Drop Forged Wheels are hot forged from Alloy Steels and can be used in the roughest of applications on the poorest of floors. these are virtually in-destructible within their capacity range .tread faces are fully machined for easy maneuverability - these wheels offer high abrasion and oil resistance . Wheel Bearing Options: Sealed precision ball bearings, tapered roller bearings or roller bearings.Temperature range:-100° C to +600° C.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

150

Tread Width(mm)

Load Capacity(kg)

3000

Wheel Bearing

Ball Bearing

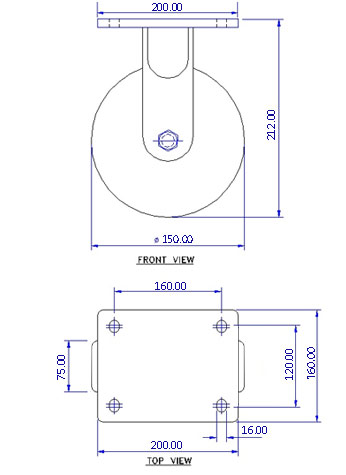

Overall Height(mm)

212

Top Plate(mm)

200 x 160

Bolt Hole Dia(mm)

160 x 120

Non Marking

Heat Resistant

Yes

Noise Reduction

Request a Catalogue

ABE50-63R-DF
