Home » Castors By Series » ABE75 Series » ABE75 Forged Precision Bearing Castors with DF Series Drop Forged Steel Wheels » ABE75-83S-DF-WFB

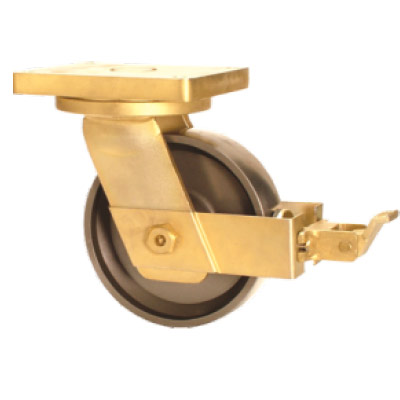

ABE75-83S-DF-WFB

3500

200

Alloy
Steel

Swivel
with
Wheel
Face
Brake

Brake

Muvtons drop forged wheels are hot forged from alloy steels and can be used in the roughest of applications on the poorest of floors. These are virtually in-destructible within their capacity range . Tread faces are fully machined for easy maneuverability - these wheels offer high abrasion and oil resistance . Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range:-100° c to +600° c.

Send Us Product Enquiry for a Quick Response

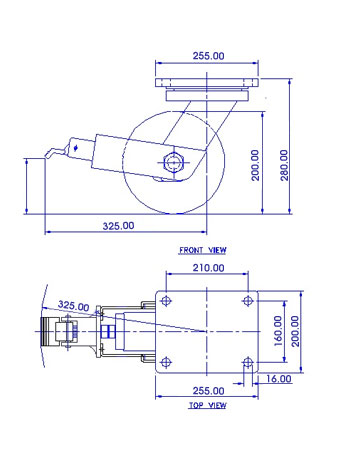

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

200

Tread Width(mm)

Load Capacity(kg)

3500

Wheel Bearing

Ball Bearing

Overall Height(mm)

280

Swivel Radius(mm)

165

Swivel Radius WFB(mm)

325

Top Plate(mm)

255 x 200

Bolt Hole Centers

210 x 160

Non Marking

Heat Resistant

Noise Reduction
