Home » Castors By Series » ABE75 Series » ABE75 Forged Precision Bearing Castors with MCNY Series Cast Polyamide Wheels » ABE75-104S-MCNY

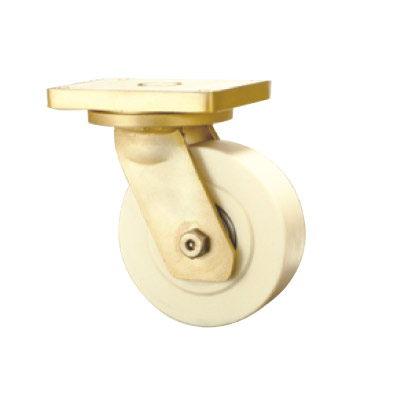

ABE75-104S-MCNY

7500

250

Cast
Polyamide

Swivel
Castor

none

Muvtons mcny wheels produced from high impact resistant cast polymide are the ultimate choice for extremely high loads where metalic wheels are not an option . These wheels posses very high abrasion resistance and offer low rolling resistance under extreme loads. Can be used in corrosive applications. Wheels bearing options : sealed precision ball bearing or plain bore. Temperature range:-30° c to +80° c.

Send Us Product Enquiry for a Quick Response

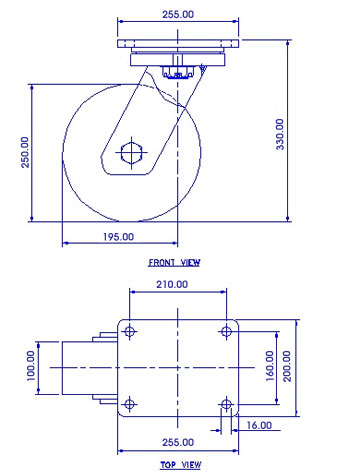

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Cast Polyamide

Wheel Dia(mm)

250

Tread Width(mm)

100

Load Capacity(kg)

7500

Wheel Bearing

Ball Bearing

Overall Height(mm)

330

Swivel Radius(mm)

195

Top Plate(mm)

255 x 200

Bolt Hole Centers

210 x 160

Non Marking

Heat Resistant

Yes

Noise Reduction
