Home » Castors By Series » ABE75 Series » ABE75 Forged Precision Bearing Castors with DF Series Drop Forged Steel Wheels » ABE75-103R-DF

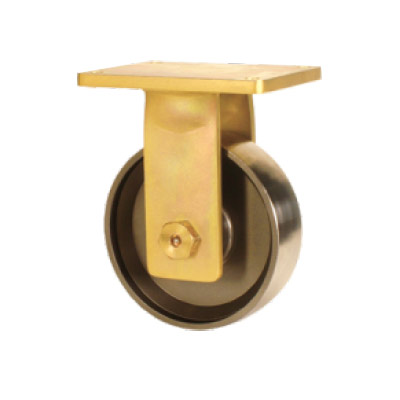

ABE75-103R-DF

4500

250

Alloy
Steel

Rigid
Castors

none

Muvtons drop forged wheels are hot forged from alloy steels and can be used in the roughest of applications on the poorest of floors. These are virtually in-destructible within their capacity range . Tread faces are fully machined for easy maneuverability - these wheels offer high abrasion and oil resistance . Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range:-100° c to +600° c.

Send Us Product Enquiry for a Quick Response

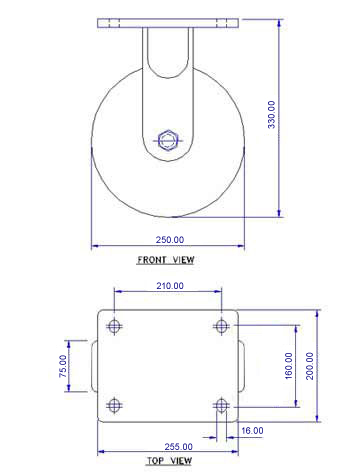

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

250

Tread Width(mm)

Load Capacity(kg)

4500

Wheel Bearing

Ball Bearing

Overall Height(mm)

330

Top Plate(mm)

255 x 200

Bolt Hole Centers

210 x 160

Non Marking

Heat Resistant

Noise Reduction
