Home » Castors By Series » ABE75 Series » ABE75 Forged Precision Bearing Castors with SZS Series Soft Polyurethane Wheels » ABE75-84S-SZS

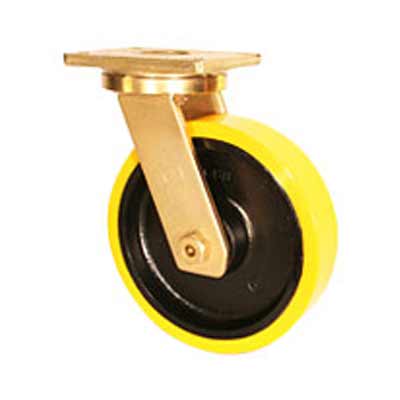

ABE75-84S-SZS

1400

200

Polyurethane

Swivel
Castor

none

Muvtons premium soft durometer polyurethane treaded wheels 83° ±3° Shore A, Firmly bonded to precision machined cast iron cores. These wheels have been designed to response to noise problems and allow loaded to be cushioned. The use of lively polyurethane materials allows these wheels to flex & roll over debris and obstacies without picking up objects. They are non marking and floor protective. Tested & guranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range; -20°C to +85°C. Thread options : Anti static : conductive wheels are available.

Send Us Product Enquiry for a Quick Response

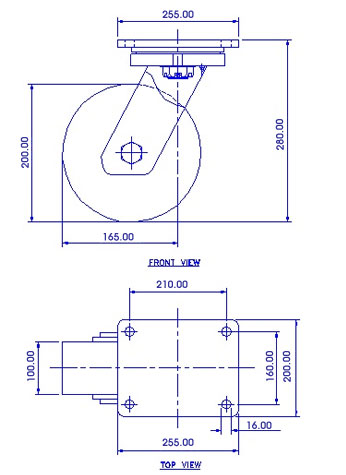

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

83° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

200

Tread Width(mm)

100

Load Capacity(kg)

1400

Wheel Bearing

Ball Bearing

Overall Height(mm)

280

Swivel Radius(mm)

165

Top Plate(mm)

255 x 200

Bolt Hole Centers

210 x 160

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
