Home » Castors By Series » ABLP Series » ABLP Forged Precision Bearing Castors with SFS Series Solid Elastomer Wheels »  ABLP-103S-SFS

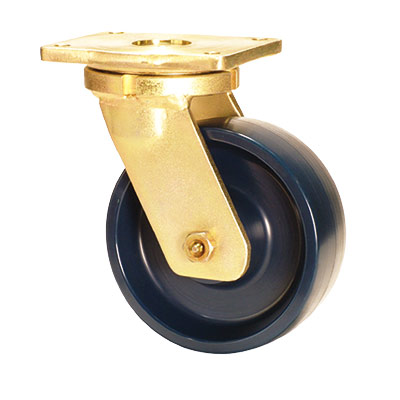

ABLP-103S-SFS

Product Info (PDF)


Muvtons

1350

250

Polyurethane

Swivel
Castor

none

Muvtons exclusively designed " real solid " elastomer wheels produced from premium liquid cast polyurethane 73° ±3° shore d mechanically & chemically locked to a non corrosive metallic core that holds the wheel bearings and also provides structural rigidity under heavy loads. These wheels resist compression set, have excellent resilience for easy movement even under high loads and expel floor debris. Can be used for corrosive applications with suitable bearings. They are non marking and floor protective. Tested & guaranteed against bond failures. Wheel bearing options : sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -20°c to +85°c. Tread options:anti-static; conductive wheels are available.




Muvtons

Send Us Product Enquiry for a Quick Response

Technical Data
Castor Type
Swivel Castor without Brake
Wheel Material
Polyurethane
Wheel Hardness
73° ± 3° Shore D
Wheel Center
Aluminium
Wheel Dia(mm)
250
Tread Width(mm)
75
Load Capacity(kg)
1350
Wheel Bearing
Ball Bearing

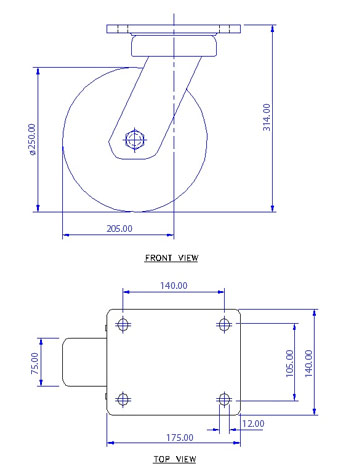

Overall Height(mm)
314
Swivel Radius(mm)
205
Top Plate(mm)
175 x 140
Bolt Hole Dia(mm)
140 x 105
Non Marking
yes
Heat Resistant
Yes
Noise Reduction
-
