Home » Castors By Series » ABLP Series » ABLP Forged Precision Bearing Castors with MCNY Series Cast Polyamide Wheels » ABLP-63S-MCNY-TL

ABLP-63S-MCNY-TL

Catalogue (PDF)

CAD Download

ZOOM

2000

150

Cast
Polyamide

Swivel
with
Total
Lock

Brake

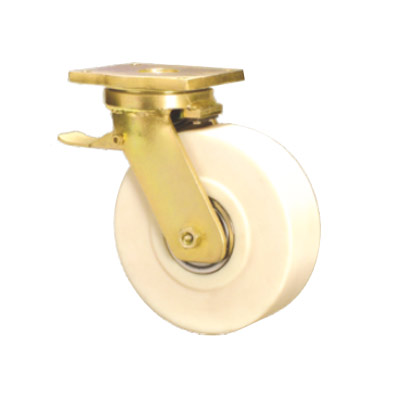

Muvtons MCNY Wheels produced from high impact resistant cast polymide are the ultimate choice for extremely high loads where metallic wheels are not an option. These wheels posses very high abrasion resistance and offer low rolling resistance under extreme loads. Can be used in corrosive applications. Wheels Bearing Options : Sealed precision ball bearing or plain bore.temperature range:-30° C to +80° C.

Send Us Product Enquiry for a Quick Response

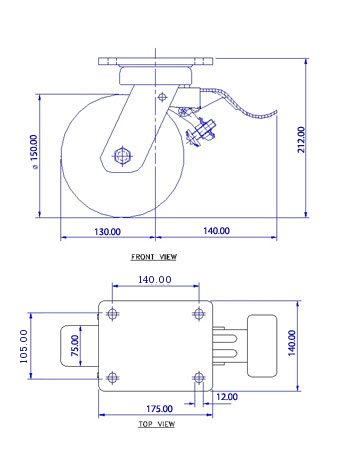

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Cast Polyamide

Wheel Dia(mm)

150

Tread Width(mm)

Load Capacity(kg)

2000

Wheel Bearing

Ball Bearing

Overall Height(mm)

212

Swivel Radius(mm)

130

Swivel Radius TL(mm)

140

Top Plate(mm)

175 x 140

Bolt Hole Centers

140 x 105

Non Marking

Heat Resistant

Yes

Noise Reduction
