Home » Castors By Series » ABLP Series » ABLP Forged Precision Bearing Castors with SAS Series Polyurethane Wheels » ABLP-83S-SAS-TL

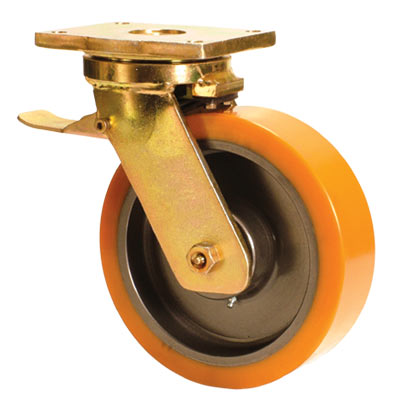

ABLP-83S-SAS-TL

Catalogue (PDF)

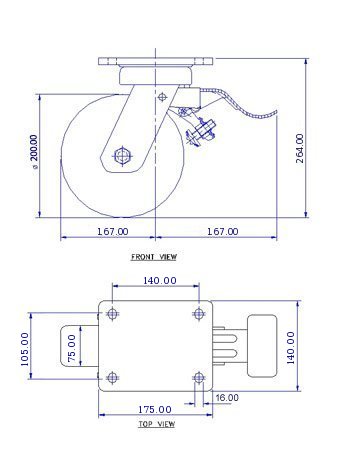

CAD Download

ZOOM

1400

200

Polyurethane

Swivel
with
Total
Lock

Brake

Muvtons premium polyurethane treaded wheels 93° ±3° Shore A, firmly bonded to precision machined cast iron cores offer low rolling resistance, smooth & noiseless running are non-marking and floor protective. These wheels possess high abrasion & cut resistance and are resistant to tearing. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings, color, light brown. Temperature range : -20°C to +85°C. Tread options: Anti static : Conductive wheels are available.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

200

Tread Width(mm)

Load Capacity(kg)

1400

Wheel Bearing

Ball Bearing

Overall Height(mm)

264

Swivel Radius(mm)

167

Swivel Radius TL(mm)

167

Top Plate(mm)

175 x 140

Bolt Hole Centers

140 x 105

Non Marking

yes

Heat Resistant

Yes

Noise Reduction

yes
