Home » Castors By Series » BDS Series » BDS Series Castors with SEB Series Elastic Rubber Wheels » BDS-415-SEB-TL

BDS-415-SEB-TL

150

100

Elastic
Rubber

Swivel
with
Total
Lock

Brake

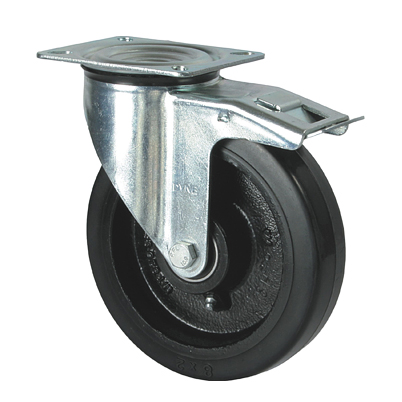

Muvtons black elastic rubber tyred wheels firmly chemically bonded to precision machined cast iron cores. Highly resilient 75° ±5° Shore A rubber provides very smooth and silent running. Can be used for power towing applications by suitably de-rating the load capacity. Wheel bearing options: Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -20°C +75°C Tread Options: Anti Static, conductive and oil resistant wheels are available.

Send Us Product Enquiry for a Quick Response

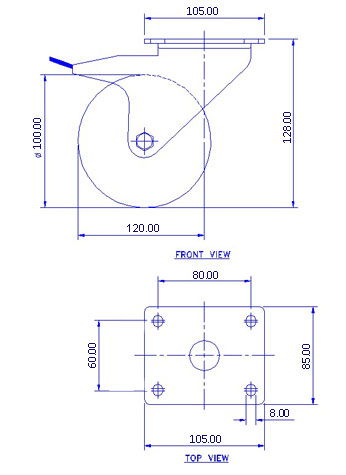

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Elastic Rubber

Wheel Hardness

75° ± 5° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

100

Tread Width(mm)

Load Capacity(kg)

150

Wheel Bearing

Ball Bearing

Overall Height(mm)

128

Swivel Radius(mm)

Swivel Radius TL(mm)

120

Top Plate(mm)

105 x 85

Bolt Hole Centers

80 x 60

Non Marking

Heat Resistant

Yes

Noise Reduction

Yes
