Home » Castors By Series » BDS Series » BDS Series Castors with PNY Series Polyurethane Wheels » BDS-515R-PNY

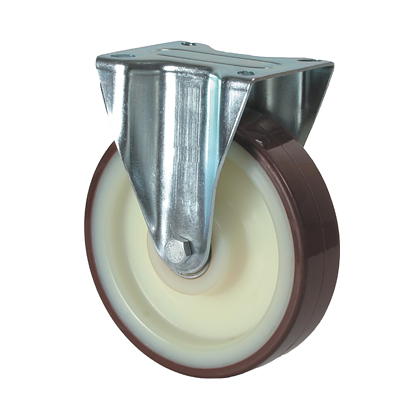

BDS-515R-PNY

350

125

Polyurethane

Rigid
Castor

none

Liquid Cast Quality polyurethane chemically and mechanically to a strong polyamide core. Non-corrosive & non-marking 95° shore A, non-Staining, abrasion-resistant, floor-saving, low-noise operation,low rolling resistance tested & guaranteed against bond failures. Wheel Bearing Options: Sealed precision ball bearing or roller bearings. Temperature range:-20°C to +85°C.Alternatively available with soft polyurethane treand.

Send Us Product Enquiry for a Quick Response

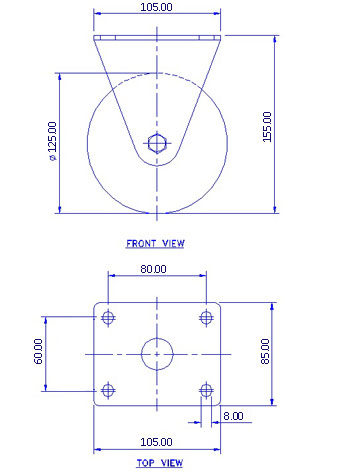

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

95° Shore A

Wheel Center

Nylon Polyamide

Wheel Dia(mm)

125

Tread Width(mm)

Load Capacity(kg)

350

Wheel Bearing

Ball Bearing

Overall Height(mm)

155

Top Plate(mm)

105 x 85

Bolt Hole Centers

80 x 60

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
