Home » Castors By Series » BHS Series » BHS Series Castors with NY Series Nylon Wheels » BHS-412-NY-TL

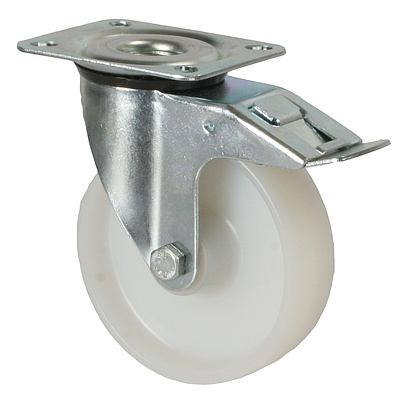

BHS-412-NY-TL

250

100

Nylon

Swivel
with
Total
Lock

Brake

Injection Moduled high quality polyamide offer high abrasion resistance, low rolling resistance & smooth running on even floors. Corrosion resistant, provide chemical resistance to alcohol, grease and some acids in mild concentration. Not recommended for epoxy coated floor surfaces. Wheel Bearing Options: Sealed Precision ball bearings or roller bearings. Color:Natural White Temperature range:-40°C to +80°C.

Send Us Product Enquiry for a Quick Response

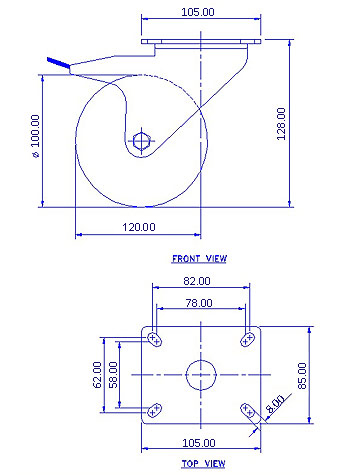

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Nylon Polyamide

Wheel Center

Nylon Polyamide

Wheel Dia(mm)

100

Tread Width(mm)

Load Capacity(kg)

250

Wheel Bearing

Ball Bearing

Overall Height(mm)

128

Swivel Radius(mm)

Swivel Radius TL(mm)

120

Top Plate(mm)

105 x 85

Bolt Hole Centers

82 x 62 to 78 x 58

Non Marking

Heat Resistant

Yes

Noise Reduction
