Home » Castors By Series » BHS Series » BHS Series Castors with RNY Series Elastic Rubber Wheels » BHS-512-RNY-TL

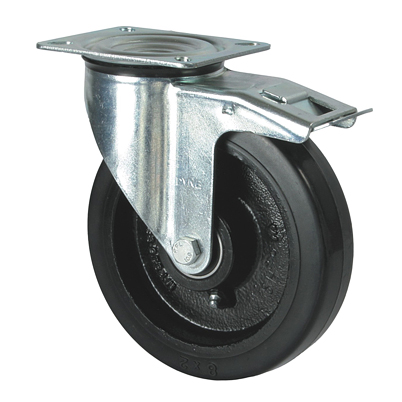

BHS-512-RNY-TL

Catalogue (PDF)

CAD Download

ZOOM

150

125

Elastic
Rubber

Swivel
with
Total
Lock

Brake

Muvtons black elastic rubber tyred wheels firmly chemically bonded to precision machined cast iron cores. Highly resilient 75° ±5° Shore A rubber provides very smooth and silent running. Can be used for power towing applications by suitably de-rating the load capacity. Wheel bearing options: Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -20°C +75°C Tread Options: Anti Static, conductive and oil resistant wheels are available.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Elastic Rubber

Wheel Hardness

75° ± 5° Shore A

Wheel Center

Nylon Polyamide

Wheel Dia(mm)

125

Tread Width(mm)

Load Capacity(kg)

150

Wheel Bearing

Ball Bearing

Overall Height(mm)

155

Swivel Radius(mm)

107

Swivel Radius TL(mm)

127

Top Plate(mm)

105 x 85

Bolt Hole Centers

82 x 62 to 78 x 58

Non Marking

Heat Resistant

Yes

Noise Reduction

Yes
