Home » Castors By Series » BHS Series » BHS Series Castors with PNY Series Polyurethane Wheels » BHS-312-PNY-TL

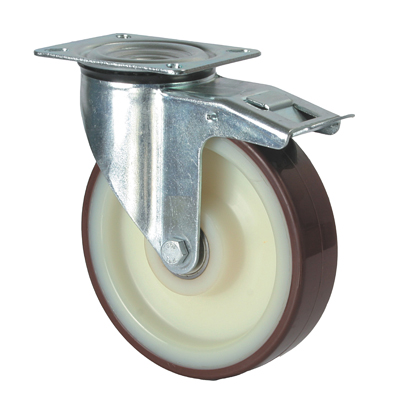

BHS-312-PNY-TL

Catalogue (PDF)

CAD Download

ZOOM

100

Polyurethane

Swivel
with
Total
Lock

Brake

Liquid Cast Quality polyurethane chemically and mechanically to a strong polyamide core. Non-corrosive & non-marking 95° shore A, non-Staining, abrasion-resistant, floor-saving, low-noise operation,low rolling resistance tested & guaranteed against bond failures. Wheel Bearing Options: Sealed precision ball bearing or roller bearings. Temperature range:-20°C to +85°C.Alternatively available with soft polyurethane tread.

Send Us Product Enquiry for a Quick Response

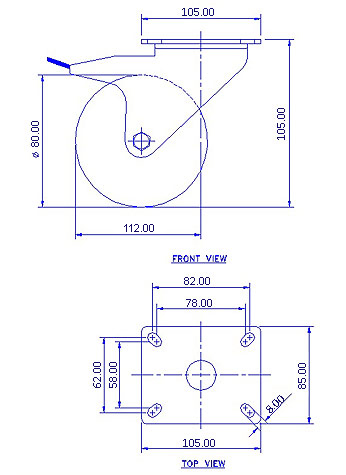

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

95° Shore A

Wheel Center

Nylon Polyamide

Wheel Dia(mm)

Tread Width(mm)

Load Capacity(kg)

100

Wheel Bearing

Ball Bearing

Overall Height(mm)

105

Swivel Radius(mm)

Swivel Radius TL(mm)

112

Top Plate(mm)

105 x 85

Bolt Hole Centers

82 x 62 to 78 x 58

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
