Home » Castors By Series » BHS Series » BHS Series Castors with SJS Series Polyurethane Wheels » BHS-615-SJS-TL

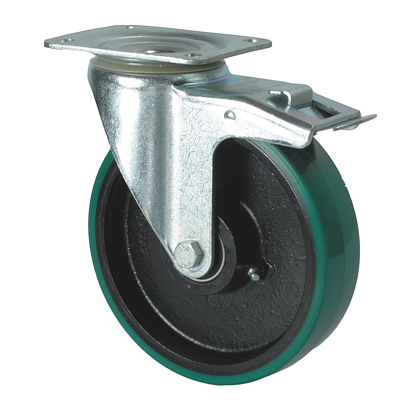

BHS-615-SJS-TL

350

150

Polyurethane

Swivel
with
Total
Lock

Brake

Muvtons medium duty polyurethane treaded wheels 93° ±3c shore a for medium and light applications offer a cost effective yet a good solution polyurethane treads is firmly bonded to precision machined and floor protective. Tested & guaranteed against bond failures. Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Color: light brown, temperature range : -20°c to +85°c.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

150

Tread Width(mm)

Load Capacity(kg)

350

Wheel Bearing

Ball Bearing

Overall Height(mm)

190

Swivel Radius(mm)

135

Swivel Radius TL(mm)

165

Top Plate(mm)

135 x 110

Bolt Hole Centers

110 x 85 to 100 x 75

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
