Home » Castors By Series » BHS SS Series » BHS-SS Series Castors with PNY Series Polyurethane Wheels » BHS-SS-615R-PNY

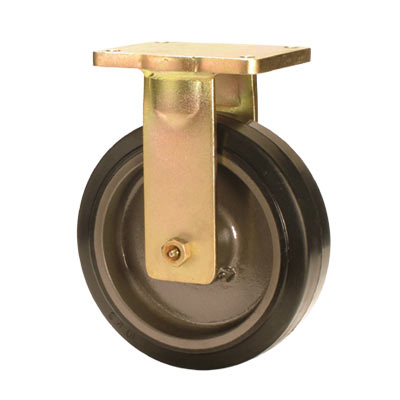

BHS-SS-615R-PNY

300

150

Polyurethane

Rigid
Castor

none

Liquid cast quality polyurethane chemically and mechanically to a strong polyamide core. Non-corrosive & non-marking 95° shore a, non-staining, abrasion-resistant, floor-saving, low-noise operation,low rolling resistance tested & guaranteed against bond failures. Wheel bearing options: sealed precision ball bearing or roller bearings. Temperature range:-20°c to +85°c. Alternatively available with soft polyurethane tread.

Send Us Product Enquiry for a Quick Response

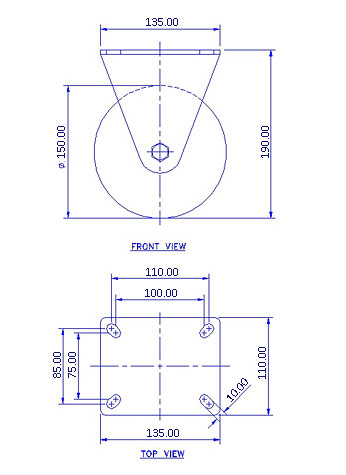

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

95° Shore A

Wheel Center

Nylon Polyamide

Wheel Dia(mm)

150

Tread Width(mm)

Load Capacity(kg)

300

Wheel Bearing

Ball Bearing

Overall Height(mm)

190

Top Plate(mm)

135 x 110

Bolt Hole Centers

110 x 85 to 100 x 75

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
