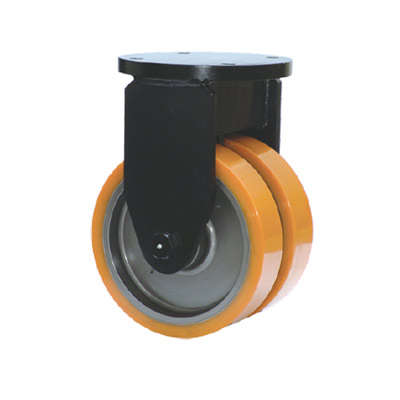

DABE100-165R-SAS

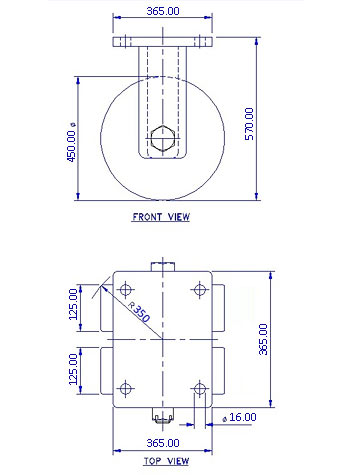

CAD Download

Product Info (PDF)

ZOOM

11500

450

Polyurethane

Rigid
Castor

none

Muvtons premium polyurethane threaded wheels 93° ±3° Shore A, firmly bonded to precision machined cast iron cores offer low rolling resistance, smooth & noiseless running are non-marking and floor protective. These wheels possess high abrasion & cut resistance and are resistant to tearing. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings, color, light brown. Temperature range : -20°C to +85°C. Tread options: Anti static : Conductive wheels are available.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

450

Tread Width(mm)

125 x 2

Load Capacity(kg)

11500

Wheel Bearing

Ball Bearing

Overall Height(mm)

570

Swivel Radius(mm)

350

Top Plate(mm)

365 dia

Bolt Hole Centers

4 holes at 300 p.c.d

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
