Home » Castors By Series » DABE50 Series » DABE50 Forged Twin Wheel Castors with SAS Series Polyurethane Wheels » DABE50-123R-SAS

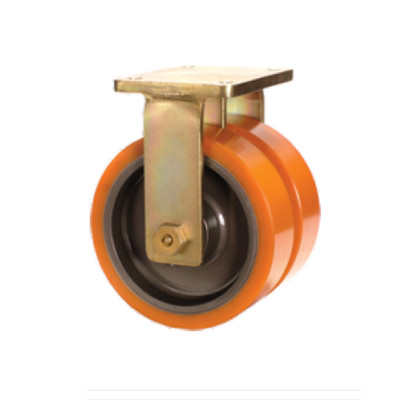

DABE50-123R-SAS

4400

300

Polyurethane

Rigid
Castor

none

Muvtons premium polyurethane treaded wheels 93° ±3° Shore A, firmly bonded to precision machined cast iron cores offer low rolling resistance, smooth & noiseless running are non-marking and floor protective. These wheels possess high abrasion & cut resistance and are resistant to tearing. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings, color, light brown. Temperature range : -20°C to +85°C. Tread options: Anti static : Conductive wheels are available.

Send Us Product Enquiry for a Quick Response

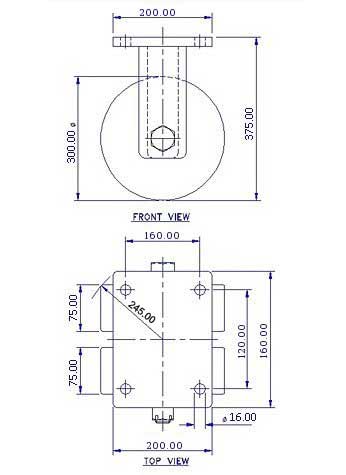

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

300

Tread Width(mm)

75x2

Load Capacity(kg)

4400

Wheel Bearing

Ball Bearing

Overall Height(mm)

375

Swivel Radius(mm)

245

Top Plate(mm)

200 x 160

Bolt Hole Centers

160 x 120

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
