Home » Castors By Series » DABE50 Series » DABE50 Forged Twin Wheel Castors with SFS Series Solid Elastomer Wheels » DABE50-123S-SFS

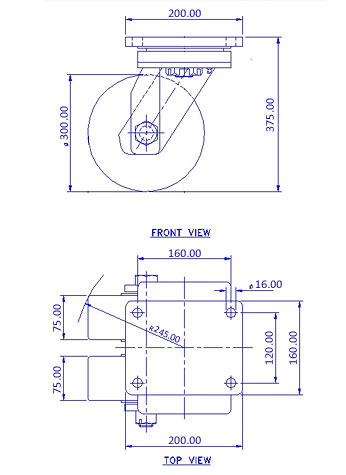

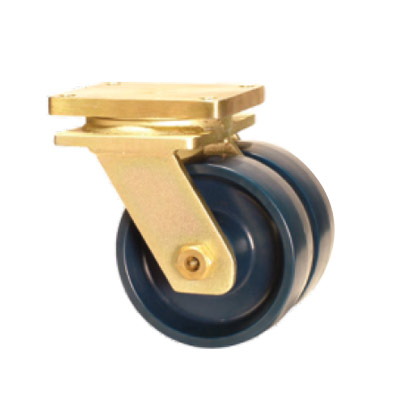

DABE50-123S-SFS

3100

300

Polyurethane

Swivel
Castor

none

Muvtons premium soft durometer polyurethane treaded wheels 83° ±3° shore a, firmly bonded to precision machined cast iron cores. These wheels have been designed in response to noise problems and allow loads to be cushioned. The use of 'lively' polyurethane materials allows these wheels to 'flex & roll' over debris and obstacles without picking up objects. They are non-marking and floor protective. Tested & guaranteed against bond failures. Wheel bearing options : sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range: -20° c to +85° c. Tread options : anti-static.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

73° ± 3° Shore D

Wheel Center

Aluminium

Wheel Dia(mm)

300

Tread Width(mm)

75 x 2

Load Capacity(kg)

3100

Wheel Bearing

Ball Bearing

Overall Height(mm)

375

Swivel Radius(mm)

245

Top Plate(mm)

200 x 160

Bolt Hole Centers

160 x 120

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction
