Home » Castors By Series » DABE50 Series » DABE50 Forged Twin Wheel Castors with MCNY Series Cast Polyamide Wheels » DABE50-63S-MCNY-WFB

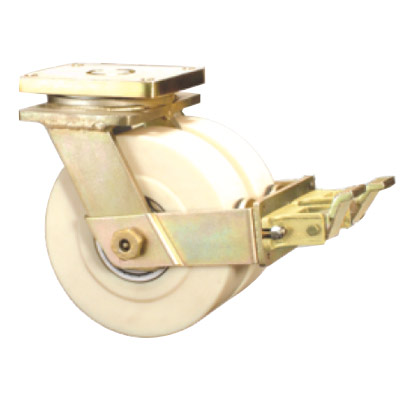

DABE50-63S-MCNY-WFB

Catalogue (PDF)

CAD Download

ZOOM

5000

150

Cast
Polyamide

Swivel
with
Wheel
Face
Brake

Brake

Muvtons MCNY wheels produced from high impact resistant cast polyamide are the ultimate choice for extremely high loads where metallic wheels are not an option . These wheels posses very high abrasion resistance and offer low rolling resistance under extreme loads. Can be used in corrosive applications. Wheels bearing options : sealed precision ball bearing or plain bore. Temperature range:-30° c to +80° c.

Send Us Product Enquiry for a Quick Response

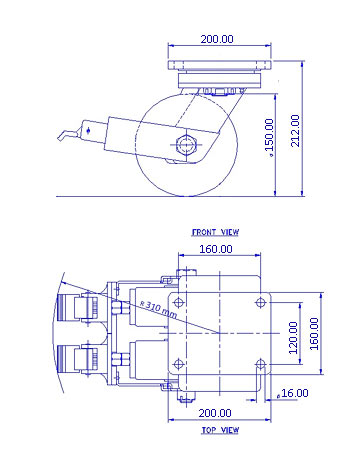

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Cast Polyamide

Wheel Dia(mm)

150

Tread Width(mm)

80 x 2

Load Capacity(kg)

5000

Wheel Bearing

Ball Bearing

Overall Height(mm)

212

Swivel Radius(mm)

160

Swivel Radius WFB(mm)

310

Top Plate(mm)

200 x 160

Bolt Hole Centers

160 x 120

Non Marking

Heat Resistant

Noise Reduction

Yes
