Home » Castors By Series » DABE50 Series » DABE50 Forged Twin Wheel Castors with SEB Series Elastic Rubber Wheels » DABE50-63S-SEB-WFB

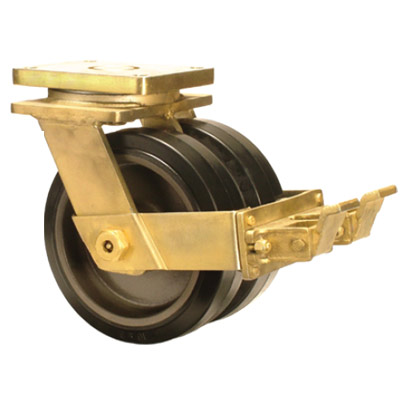

DABE50-63S-SEB-WFB

850

150

Elastic
Rubber

Swivel
with
Wheel
Face
Brake

Brake

Muvtons black elastic rubber tyred wheels firmly chemically bonded to precision machined cast iron cores. Highly resilient 75° ±5° shore a rubber provides very smooth and silent running. Can be used for power towing applications by suitably de-rating the load capacity. Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -20°c +75°c tread options: anti static, conductive and oil resistant wheels are available.

Send Us Product Enquiry for a Quick Response

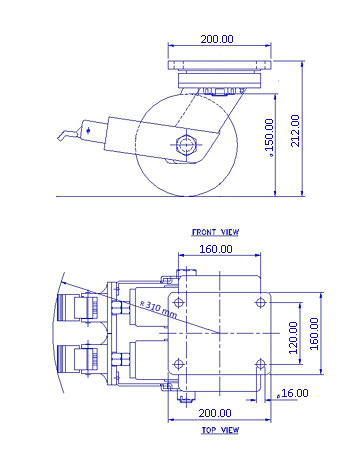

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Elastic Rubber

Wheel Hardness

75° ± 5° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

150

Tread Width(mm)

75 x 2

Load Capacity(kg)

850

Wheel Bearing

Ball Bearing

Overall Height(mm)

212

Swivel Radius(mm)

160

Swivel Radius WFB(mm)

310

Top Plate(mm)

200 x 160

Bolt Hole Centers

160 x 120

Non Marking

Heat Resistant

Yes

Noise Reduction

Yes
