Home » Castors By Series » DABE50 Series » DABE50 Forged Twin Wheel Castors with DF Series Drop Forged Steel Wheels » DABE50-83S-DF

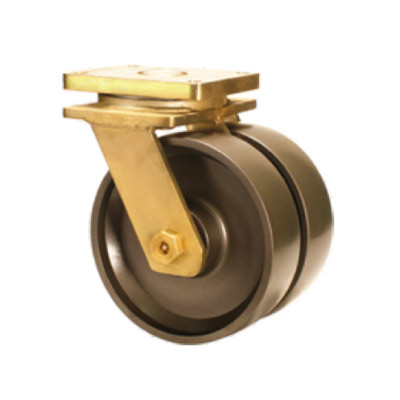

DABE50-83S-DF

5000

200

Alloy
Steel

Swivel
Castor

none

Muvtons Drop Forged Wheels are hot forged from Alloy Steels and can be used in the roughest of applications on the poorest of floors. these are virtually in-destructible within their capacity range .tread faces are fully machined for easy maneuverability - these wheels offer high abrasion and oil resistance . Wheel Bearing Options: Sealed precision ball bearings, tapered roller bearings or roller bearings.Temperature range:-100° C to +600° C.

Send Us Product Enquiry for a Quick Response

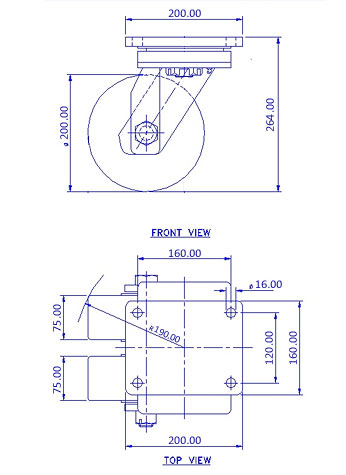

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

200

Tread Width(mm)

75 x 2

Load Capacity(kg)

5000

Wheel Bearing

Ball Bearing

Overall Height(mm)

264

Swivel Radius(mm)

190

Top Plate(mm)

200 x 160

Bolt Hole Centers

160 x 120

Non Marking

Heat Resistant

Yes

Noise Reduction
