Home » Castors By Series » DABE75 Series » DABE75 Forged Twin Wheel Castors with DF Series Drop Forged Steel Wheels » DABE75-103R-DF

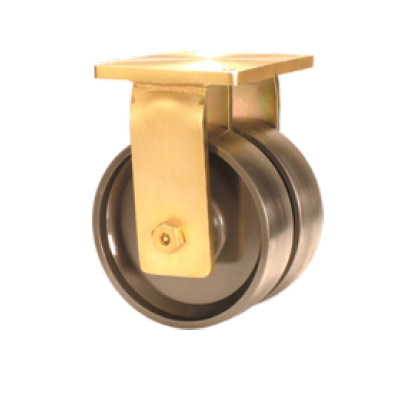

DABE75-103R-DF

Catalogue (PDF)

CAD Download

ZOOM

7500

250

Alloy
Steel

Rigid
Castor

none

Muvtons Drop Forged Wheels are hot forged from Alloy Steels and can be used in the roughest of applications on the poorest of floors. these are virtually in-destructible within their capacity range .tread faces are fully machined for easy maneuverability - these wheels offer high abrasion and oil resistance . Wheel Bearing Options: Sealed precision ball bearings, tapered roller bearings or roller bearings.Temperature range:-100° C to +600° C.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

250

Tread Width(mm)

75 x 2

Load Capacity(kg)

7500

Wheel Bearing

Ball Bearing

Overall Height(mm)

330

Swivel Radius(mm)

226

Top Plate(mm)

255 x 200

Bolt Hole Dia(mm)

210 x 160

Non Marking

Heat Resistant

Yes

Noise Reduction
