Home » Castors By Series » DABE75 Series » DABE75 Forged Twin Wheel Castors with MCNY Series Cast Polyamide Wheels » DABE75-124R-MCNY

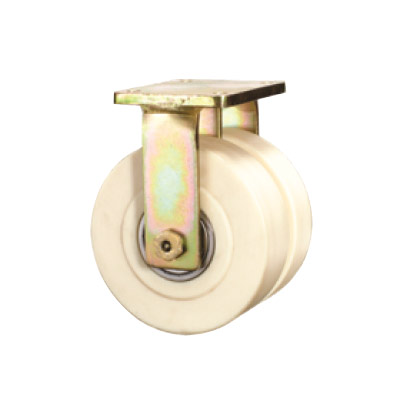

DABE75-124R-MCNY

7500

300

Cast
Polyamide

Rigid
Castor

none

Muvtons mcny wheels produced from high impact resistant cast polyamide are the ultimate choice for extremely high loads where metallic wheels are not an option . These wheels posses very high abrasion resistance and offer low rolling resistance under extreme loads. Can be used in corrosive applications. Wheels bearing options : sealed precision ball bearing or plain bore. Temperature range:-30° c to +80° c.

Send Us Product Enquiry for a Quick Response

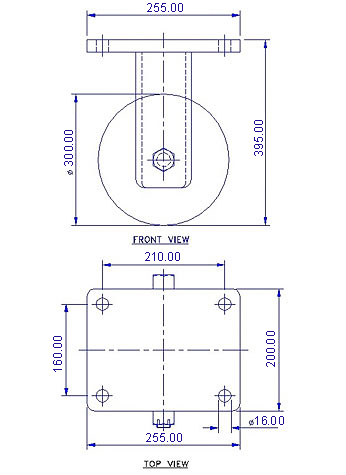

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Cast Polyamide

Wheel Dia(mm)

300

Tread Width(mm)

100 x 2

Load Capacity(kg)

7500

Wheel Bearing

Ball Bearing

Overall Height(mm)

395

Swivel Radius(mm)

261

Top Plate(mm)

255 x 200

Bolt Hole Centers

210 x 160

Non Marking

Heat Resistant

Yes

Noise Reduction
