DABE75-164S-SZS

5200

400

Polyurethane

Swivel
Castor

none

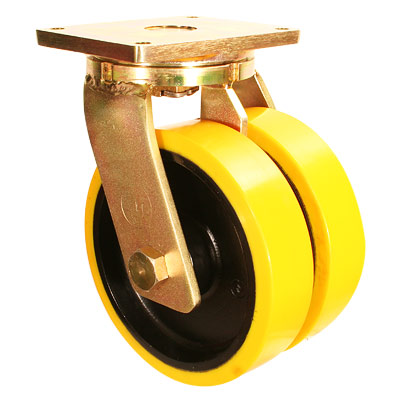

Muvtons Premium Soft Durometer Polyurethane treaded wheels 83° ± 3° Shore A, firmly bonded to precision machined cast iron cores. These wheels have been designed in response to noise problems and allow loads to be cushioned. The use of 'lively' polyurethane materials allows these wheels to 'flex & roll' over debris and obstacles without picking up objects. They are non-marking and floor protective. Tested & Guaranteed against bond failures. Wheel Bearing Options : Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range: -20° C to +85° C. Tread Options : Anti-static ; conductive wheels are.

Send Us Product Enquiry for a Quick Response

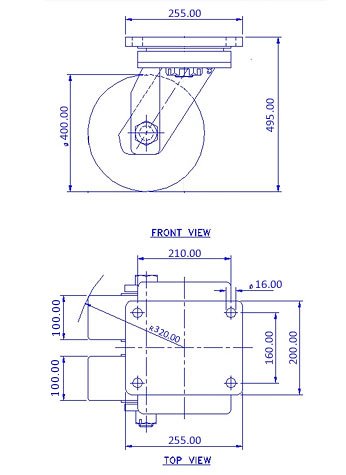

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

83° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

400

Tread Width(mm)

100 x 2

Load Capacity(kg)

5200

Wheel Bearing

Ball Bearing

Overall Height(mm)

495

Swivel Radius(mm)

320

Top Plate(mm)

255 x 200

Bolt Hole Centers

210 x 160

Non Marking

yes

Heat Resistant

Yes

Noise Reduction

yes
