Home » Castors By Series » DABE75 Series » DABE75 Forged Twin Wheel Castors with SZS Series Soft Polyurethane Wheels » DABE75-84R-SZS

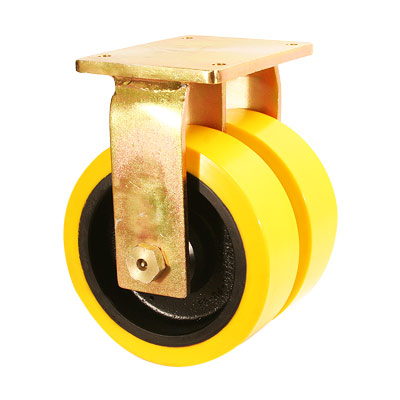

DABE75-84R-SZS

2800

200

Polyurethane

Rigid
Castor

none

Muvtons premium soft durometer polyurethane treaded wheels 83° ± 3° shore a, firmly bonded to precision machined cast iron cores. These wheels have been designed in response to noise problems and allow loads to be cushioned. The use of 'lively' polyurethane materials allows these wheels to 'flex & roll' over debris and obstacles without picking up objects. They are non-marking and floor protective. Tested & guaranteed against bond failures. Wheel bearing options : sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range: -20° c to +85° c. Tread options : anti-static ; conductive wheels are.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

83° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

200

Tread Width(mm)

100 x 2

Load Capacity(kg)

2800

Wheel Bearing

Ball Bearing

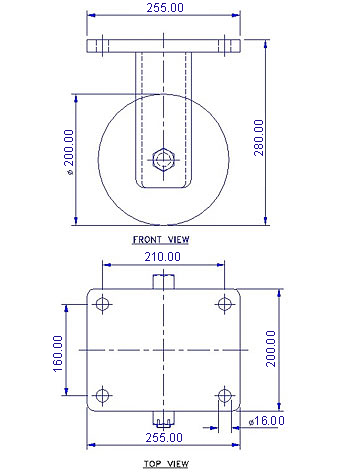

Overall Height(mm)

280

Swivel Radius(mm)

200

Top Plate(mm)

255 x 200

Bolt Hole Centers

210 x 160

Non Marking

yes

Heat Resistant

Yes

Noise Reduction

yes
