Home » Castors By Series » DABLP Series » DABLP Forged Twin Wheel Castors with MCI Series Cast Iron Wheels » DABLP-1022R-MCI

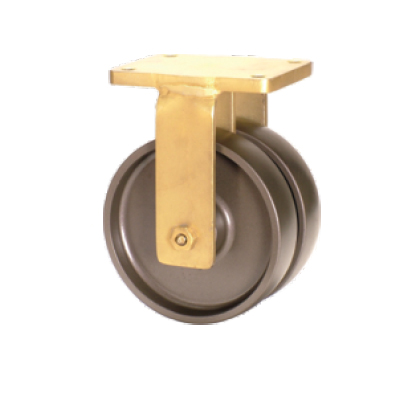

DABLP-1022R-MCI

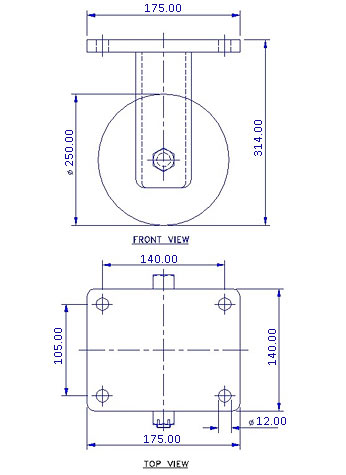

CAD Download

Product Info (PDF)

ZOOM

2000

250

Cast
Iron

Rigid
Castor

none

Muvtons special grey cast iron wheels solid core construction, tread face fully machined and crown treaded for extremely easy maneuverability. These wheels offer high abrasion and oil resistance can be used up to 600°c with appropriate wheel bearings. Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -100°c to +600°c.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Cast Iron

Wheel Dia(mm)

250

Tread Width(mm)

50 x 2

Load Capacity(kg)

2000

Wheel Bearing

Ball Bearing

Overall Height(mm)

314

Top Plate(mm)

175 x 140

Bolt Hole Centers

140 x 105

Non Marking

Heat Resistant

Yes

Noise Reduction
