Home » Castors By Series » DABLP Series » DABLP Forged Twin Wheel Castors with MCI Series Cast Iron Wheels » DABLP-1022S-MCI-WFB

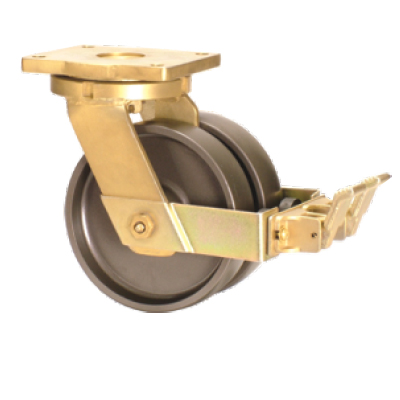

DABLP-1022S-MCI-WFB

2000

250

Cast
Iron

Swivel
with
Wheel
Face
Brake

Brake

Muvtons special grey cast iron wheels solid core construction, tread face fully machined and crown treaded for extremely easy maneuverability. These wheels offer high abrasion and oil resistance can be used upto 600°c with appropriate wheel bearings. Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -100°c to +600°c.

Send Us Product Enquiry for a Quick Response

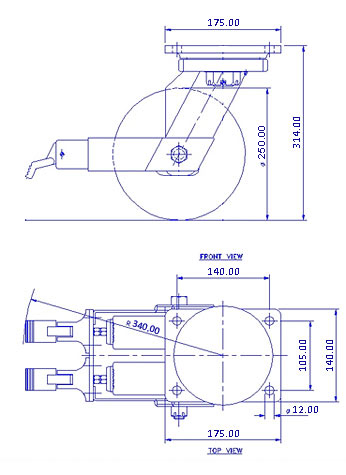

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Cast Iron

Wheel Dia(mm)

250

Tread Width(mm)

50 x 2

Load Capacity(kg)

2000

Wheel Bearing

Ball Bearing

Overall Height(mm)

314

Swivel Radius(mm)

212

Swivel Radius WFB(mm)

340

Top Plate(mm)

175 x 140

Bolt Hole Centers

140 x 105

Non Marking

Heat Resistant

Yes

Noise Reduction
