Home » Castors By Series » DABLP Series » DABLP Forged Twin Wheel Castors with SAS Series Polyurethane Wheels » DABLP-1022S-SAS-WFB

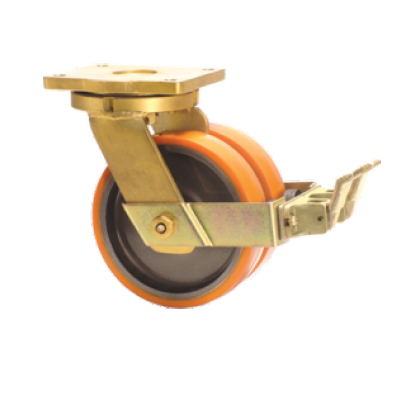

DABLP-1022S-SAS-WFB

2000

250

Polyurethane

Swivel
with
Wheel
Face
Brake

Brake

Muvtons premium polyurethane treaded wheels 93° ±3° shore a, firmly bonded to precision machined cast iron cores offer low rolling resistance, smooth & noiseless running are non-marking and floor protective. These wheels possess high abrasion & cut resistance and are resistant to tearing. Tested & guaranteed against bond failures. Wheel bearing options : sealed precision ball bearings, tapered roller bearings or roller bearings, color, light brown. Temperature range : -20°c to +85°c. Tread options: anti static : conductive wheels are available.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Cast Iron

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

250

Tread Width(mm)

50 x 2

Load Capacity(kg)

2000

Wheel Bearing

Ball Bearing

Overall Height(mm)

314

Swivel Radius(mm)

212

Swivel Radius WFB(mm)

340

Top Plate(mm)

175 x 140

Bolt Hole Centers

140 x 105

Castor Pdf File Name

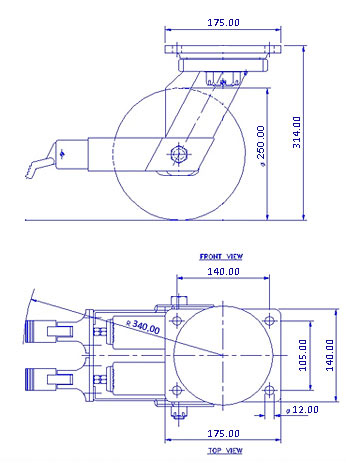

AutoCAD File Name

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
