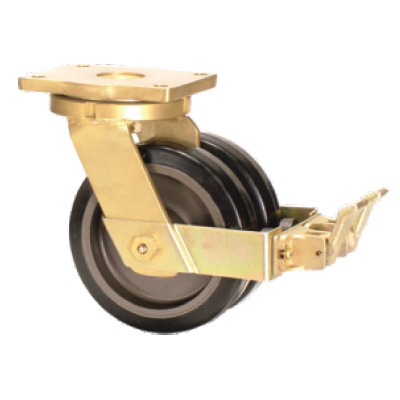

DABLP-522S-SEB-WFB

550

125

Elastic
Rubber

Swivel
with
Wheel
Face
Brake

Brake

Muvtons black elastic rubber tyred wheels firmly chemically bonded to precision machined cast iron cores. Highly resilient 75° ±5° shore a rubber provides very smooth and silent running. Can be used for power towing applications by suitably de-rating the load capacity. Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -20°c +75°c tread options: anti static, conductive and oil resistant wheels are available.

Send Us Product Enquiry for a Quick Response

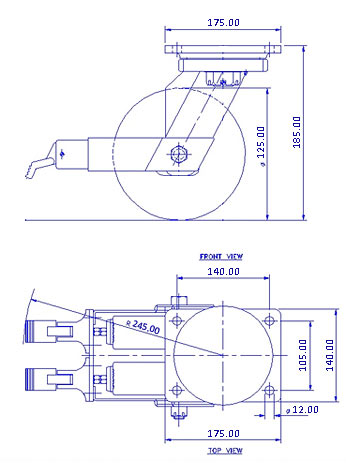

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Elastic Rubber

Wheel Hardness

75° ± 5° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

125

Tread Width(mm)

50 x 2

Load Capacity(kg)

550

Wheel Bearing

Ball Bearing

Overall Height(mm)

185

Swivel Radius(mm)

120

Swivel Radius WFB(mm)

245

Top Plate(mm)

175 x 140

Bolt Hole Centers

140 x 105

Non Marking

Heat Resistant

Yes

Noise Reduction

Yes
