Home » Castors By Series » DABLP Series » DABLP Forged Twin Wheel Castors with DF Series Drop Forged Steel Wheels » DABLP-622R-DF

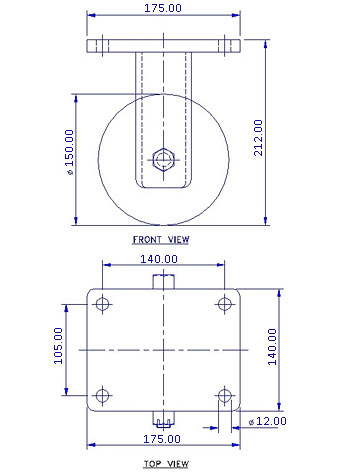

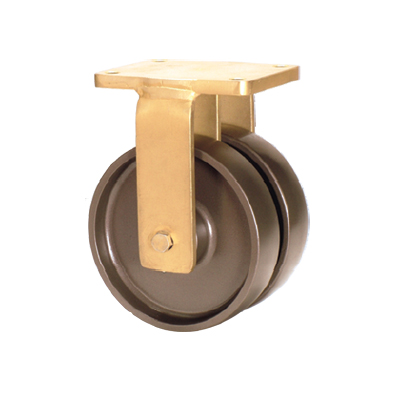

DABLP-622R-DF

2000

150

Alloy
Steel

Rigid
Castor

none

Muvtons drop forged wheels are hot forged from alloy steels and can be used in the roughest of applications on the poorest of floors. These are virtually in-destructible within their capacity range . Tread faces are fully machined for easy maneuverability - these wheels offer high abrasion and oil resistance . Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range:-100° c to +600° c.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

150

Tread Width(mm)

50 x 2

Load Capacity(kg)

2000

Wheel Bearing

Ball Bearing

Overall Height(mm)

212

Top Plate(mm)

175 x 140

Bolt Hole Centers

140 x 105

Non Marking

Heat Resistant

Yes

Noise Reduction
