Home » Castors By Series » GGSE Series » GGSE Castors with SJS Series Polyurethane Wheels » GGSE-42S-SJS-TL

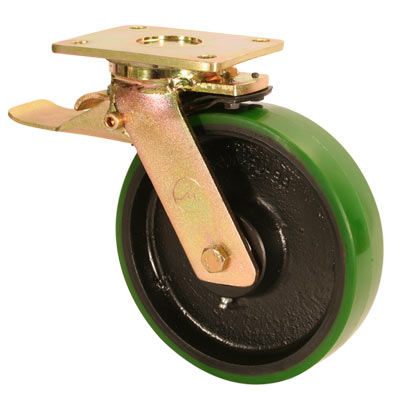

GGSE-42S-SJS-TL

325

100

Polyurethane

Swivel
with
Total
Lock

Brake

Muvtons medium duty polyurethane treaded wheels 93° ±3C Shore A for medium and light applications offer a cost effective yet a good solution Polyurethane treads is firmly bonded to precision machined and floor protective. Tested & Guaranteed against bond failures. Wheel bearing options: Sealed precision ball bearings, tapered roller bearings or roller bearings. Color: Light Brown, Temperature Range : -20°C to +85°C.

Send Us Product Enquiry for a Quick Response

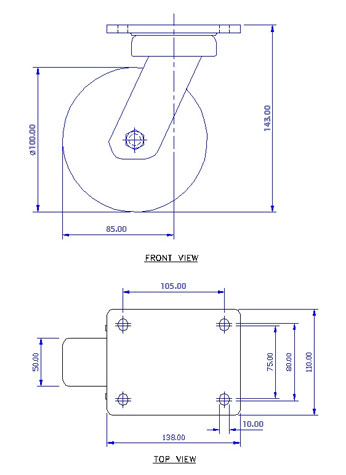

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

100

Tread Width(mm)

Load Capacity(kg)

325

Wheel Bearing

Ball Bearing

Overall Height(mm)

143

Swivel Radius(mm)

Swivel Radius TL(mm)

105

Top Plate(mm)

138 x 110

Bolt Hole Centers

105 x 75-80

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
