Home » Castors By Series » GGSE Series » GGSE Castors with SZS Series Soft Polyurethane Wheels » GGSE-42S-SZS-TL

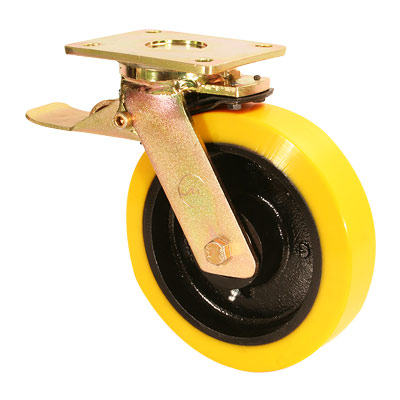

GGSE-42S-SZS-TL

250

100

Polyurethane

Swivel
with
Total
Lock

Brake

Muvtons premium soft durometer polyurethane treaded wheels 83° ±3° Shore A, Firmly bonded to precision machined cast iron cores. These wheels have been designed to response to noise problems and allow loaded to be cushioned. The use of lively polyurethane materials allows these wheels to flex & roll over debris and obstacles without picking up objects. They are non marking and floor protective. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range; -20°C to +85°C. Thread options : Anti static : conductive wheels are available.

Send Us Product Enquiry for a Quick Response

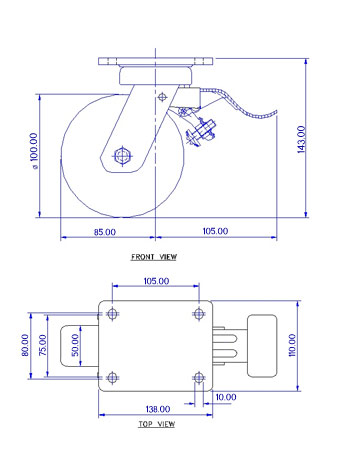

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

83° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

100

Tread Width(mm)

Load Capacity(kg)

250

Wheel Bearing

Ball Bearing

Overall Height(mm)

143

Swivel Radius(mm)

Swivel Radius TL(mm)

105

Top Plate(mm)

138 x 110

Bolt Hole Dia(mm)

105 x 75-80

Non Marking

yes

Heat Resistant

Yes

Noise Reduction

yes
