Home » Castors By Series » GGSE-SPR Series » GGSE-SPR Spring Loaded Castors with SEB Series Elastic Rubber Wheels » GGSE-SPR-42S-SEB

GGSE-SPR-42S-SEB

210

100

Elastic
Rubber

Swivel
Castor

none

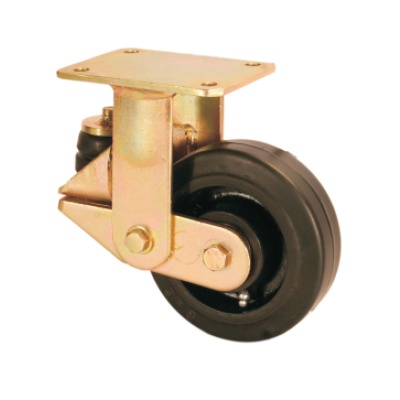

Muvtons black elastic rubber tyred wheels firmly chemically bonded to precision machined cast iron cores. Highly resilient 75° ±5° Shore A rubber provides very smooth and silent running. Can be used for power towing applications by suitably de-rating the load capacity. Wheel bearing options: Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -20°C +75°C Tread Options: Anti Static, conductive and oil resistant wheels are available.

Send Us Product Enquiry for a Quick Response

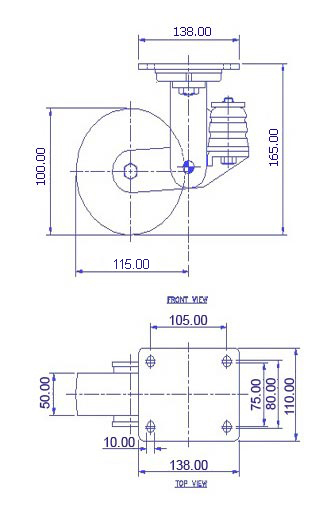

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Elastic Rubber

Wheel Hardness

75° ± 5° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

100

Tread Width(mm)

Load Capacity(kg)

210

Wheel Bearing

Ball Bearing

Overall Height(mm)

165

Swivel Radius(mm)

115

Top Plate(mm)

138 x 110

Bolt Hole Dia(mm)

105 x 75-80

Non Marking

Heat Resistant

Yes

Noise Reduction

Yes
