Home » Castors By Series » GGSE-SPR Series » GGSE-SPR Spring Loaded Castors with SJS Series Polyurethane Wheels » GGSE-SPR-62S-SJS-WFB

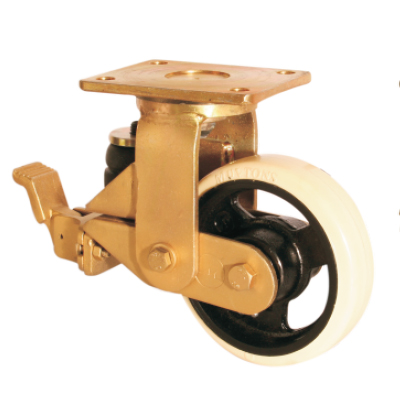

GGSE-SPR-62S-SJS-WFB

550

150

Polyurethane

Swivel
with
Wheel
Face
Brake

Brake

Muvtons medium duty polyurethane treaded wheels 93° ±3C Shore A for medium and light applications offer a cost effective yet a good solution Polyurethane treads is firmly bonded to precision machined and floor protective. Tested & Guaranteed against bond failures. Wheel bearing options: Sealed precision ball bearings, tapered roller bearings or roller bearings. Color: Light Brown, Temperature Range : -20°C to +85°C.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

150

Tread Width(mm)

Load Capacity(kg)

550

Wheel Bearing

Ball Bearing

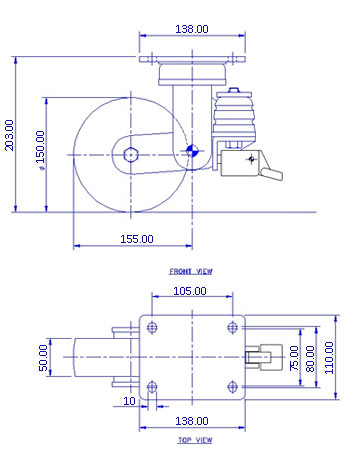

Overall Height(mm)

203

Swivel Radius(mm)

165

Swivel Radius WFB(mm)

155

Top Plate(mm)

138 x 110

Bolt Hole Centers

105 x 75-80

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
