Home » Castors By Series » GHKE-SAS Series » GHKE Castors with SAS Series Polyurethane Wheels » GHKE-62S-SAS

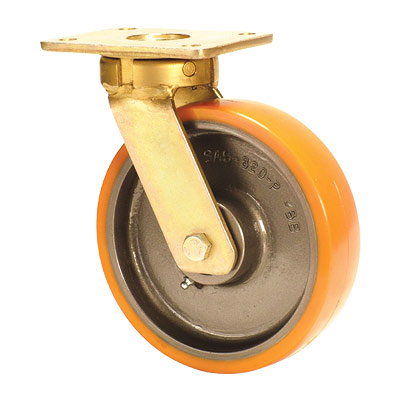

GHKE-62S-SAS

600

150

Polyurethane

Swivel
Castor

none

Muvtons premium polyurethane treaded wheels 93° ±3° Shore A, firmly bonded to precision machined cast iron cores offer low rolling resistance, smooth & noiseless running are non-marking and floor protective. These wheels possess high abrasion & cut resistance and are resistant to tearing. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings, color, light brown. Temperature range : -20°C to +85°C. Tread options: Anti static : Conductive wheels are available.

Send Us Product Enquiry for a Quick Response

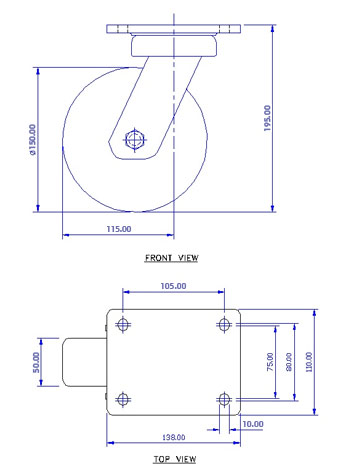

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

150

Tread Width(mm)

Load Capacity(kg)

600

Wheel Bearing

Ball Bearing

Overall Height(mm)

195

Swivel Radius(mm)

115

Top Plate(mm)

138 x 110

Bolt Hole Dia(mm)

105 x 75-80

Non Marking

yes

Heat Resistant

Yes

Noise Reduction

Yes
