Home » Castors By Series » GHKE Series » GHKE Castors with DF Series Drop Forged Steel Wheels » GHKE-82S-DF-TL

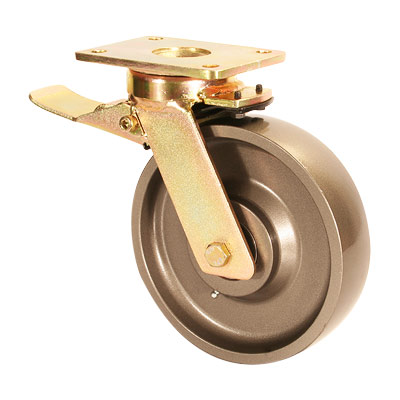

GHKE-82S-DF-TL

900

200

Alloy
Steel

Swivel
with
Total
Lock

Brake

Muvtons Drop Forged Wheels are hot forged from Alloy Steels and can be used in the roughest of applications on the poorest of floors. these are virtually in-destructible within their capacity range .tread faces are fully machined for easy maneuverability - these wheels offer high abrasion and oil resistance . Wheel Bearing Options: Sealed precision ball bearings, tapered roller bearings or roller bearings.Temperature range:-100° C to +600° C.

Send Us Product Enquiry for a Quick Response

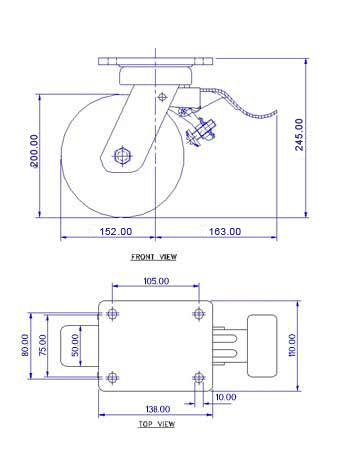

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

200

Tread Width(mm)

Load Capacity(kg)

900

Wheel Bearing

Ball Bearing

Overall Height(mm)

245

Swivel Radius(mm)

152

Swivel Radius TL(mm)

163

Top Plate(mm)

138 x 110

Bolt Hole Dia(mm)

105 x 75-80

Non Marking

Heat Resistant

yes

Noise Reduction
