Home » Castors By Series » GHKE-SAS Series » GHKE Castors with SAS Series Polyurethane Wheels » GHKE-8575S-SAS-TL

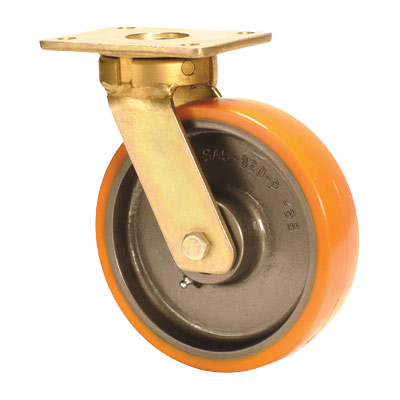

GHKE-8575S-SAS-TL

CAD Download

Product Info (PDF)

ZOOM

650

Polyurethane

Swivel
with
Wheel
Face
Brake

Brake

Muvtons premium polyurethane treaded wheels 93° ±3° Shore A, firmly bonded to precision machined cast iron cores offer low rolling resistance, smooth & noiseless running are non-marking and floor protective. These wheels possess high abrasion & cut resistance and are resistant to tearing. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings, color, light brown. Temperature range : -20°C to +85°C. Tread options: Anti static : Conductive wheels are available.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

Tread Width(mm)

Load Capacity(kg)

650

Wheel Bearing

Ball Bearing

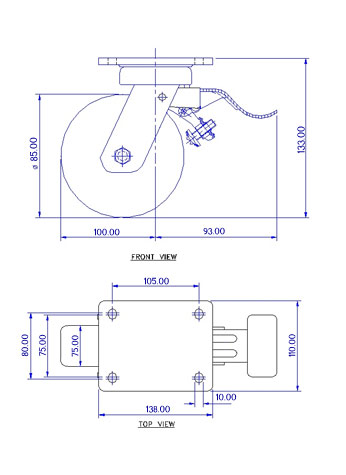

Overall Height(mm)

133

Swivel Radius(mm)

100

Swivel Radius TL(mm)

Top Plate(mm)

138 x 110

Bolt Hole Dia(mm)

105 x 75-80

Non Marking

yes

Heat Resistant

Yes

Noise Reduction

Yes
