Home » Castors By Series » GHKE-SPR Series » GHKE-SPR Spring Loaded Castors with SZS Series Soft Polyurethane Wheels » GHKE-SPR-42R-SZS

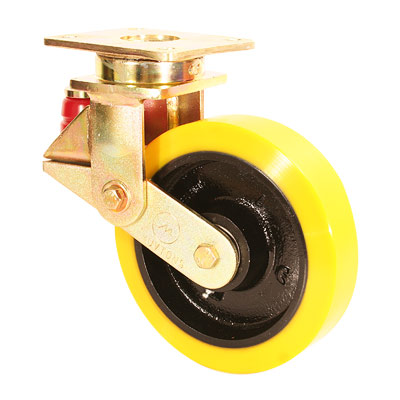

GHKE-SPR-42R-SZS

250

100

Polyurethane

Rigid
Castor

none

Muvtons premium soft durometer polyurethane treaded wheels 83° ±3° Shore A, Firmly bonded to precision machined cast iron cores. These wheels have been designed to response to noise problems and allow loaded to be cushioned. The use of lively polyurethane materials allows these wheels to flex & roll over debris and obstacles without picking up objects. They are non marking and floor protective. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range; -20°C to +85°C. Thread options : Anti static : conductive wheels are available.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

83° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

100

Tread Width(mm)

Load Capacity(kg)

250

Wheel Bearing

Ball Bearing

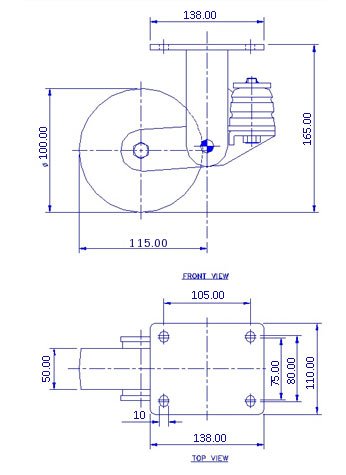

Overall Height(mm)

165

Top Plate(mm)

138 x 110

Bolt Hole Centers

105 x 75-80

Non Marking

yes

Heat Resistant

Yes

Noise Reduction

yes
