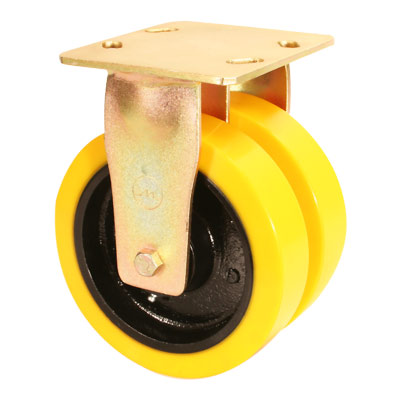

GRDDE-102R-SZS

CAD Download

Product Info (PDF)

ZOOM

1500

250

Polyurethane

Rigid
Castor

none

Muvtons premium soft durometer polyurethane treaded wheels 83° ±3° shore a, firmly bonded to precision machined cast iron cores. These wheels have been designed in response to noise problems and allow loads to be cushioned. The use of lively polyurethane materials allows these wheels to flex & roll over debris and obstacles without picking up objects. They are non-marking and floor protective. Tested & guaranteed against bond failures. Wheel bearing options : sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range: -20° c to +85° c. Tread options : anti-static.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Polyurethane

Wheel Hardness

83° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

250

Tread Width(mm)

50 x 2

Load Capacity(kg)

1500

Wheel Bearing

Ball Bearing

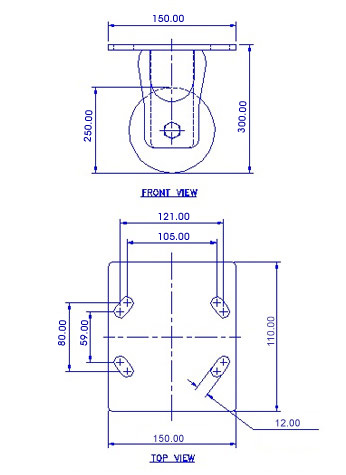

Overall Height(mm)

300

Top Plate(mm)

150 x 110

Bolt Hole Centers

105 x 80 to 121/59

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
