Home » Castors By Series » GRDDE Series » GRDDE Twin Wheel Castors with MCNY Series Cast Polyamide Wheels » GRDDE-102S-MCNY

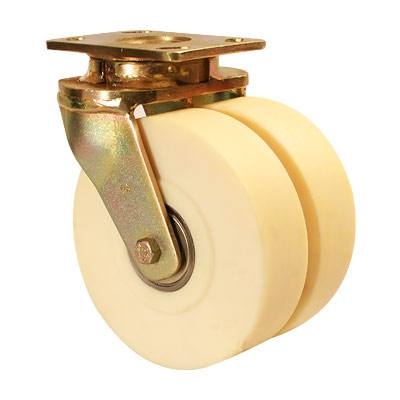

GRDDE-102S-MCNY

1500

250

Cast
Polyamide

Swivel
Castor

none

Muvtons MCNY Wheels produced from high impact resistant cast polyamide are the ultimate choice for extremely high loads where metallic wheels are not an option .these wheels posses very high abrasion resistance and offer low rolling resistance under extreme loads. Can be used in corrosive applications. Wheels Bearing Options : Sealed precision ball bearing or plain bore.temperature range:-30° C to +80° C.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Cast Polyamide

Wheel Dia(mm)

250

Tread Width(mm)

50 x 2

Load Capacity(kg)

1500

Wheel Bearing

Ball Bearing

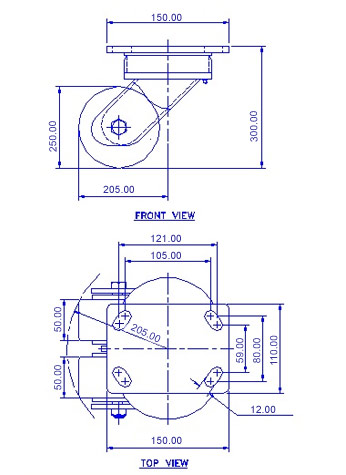

Overall Height(mm)

300

Swivel Radius(mm)

205

Top Plate(mm)

150 x 110

Bolt Hole Centers

105 x 80 to 121/59

Non Marking

Heat Resistant

Yes

Noise Reduction
