Home » Castors By Series » GRDDE Series » GRDDE Twin Wheel Castors with MCI Series Cast Iron Wheels » GRDDE-52S-MCI

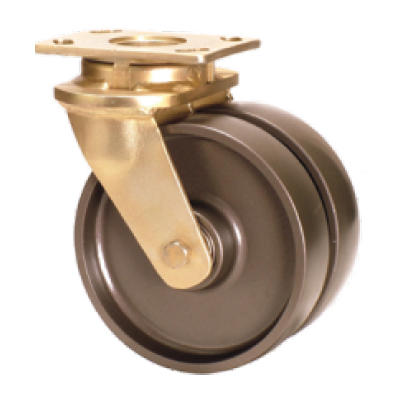

GRDDE-52S-MCI

1100

125

Cast
Iron

Swivel
Castor

none

Muvtons special grey cast iron wheels solid core construction, tread face fully machined and crown treaded for extremely easy maneuverability. These wheels offer high abrasion and oil resistance can be used up to 600°C with appropriate wheel bearings. Wheel bearing options: Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -100°C to +600°C.

Send Us Product Enquiry for a Quick Response

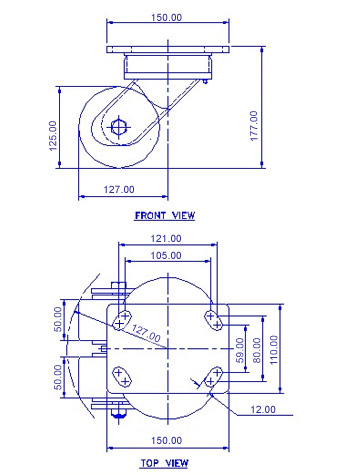

Technical Data

Castor Type

Swivel Castor without Brake

Wheel Material

Cast Iron

Wheel Dia(mm)

125

Tread Width(mm)

50 x 2

Load Capacity(kg)

1100

Wheel Bearing

Ball Bearing

Overall Height(mm)

177

Swivel Radius(mm)

127

Top Plate(mm)

150 x 110

Bolt Hole Centers

105 x 80 to 121/59

Non Marking

Heat Resistant

Yes

Noise Reduction
