Home » Castors By Series » GRDDE Series » GRDDE Twin Wheel Castors with SAS Series Polyurethane Wheels » GRDDE-52S-SAS-WFB

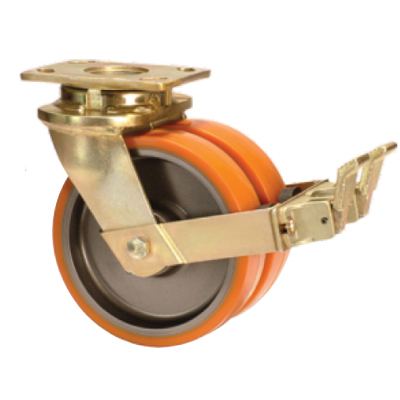

GRDDE-52S-SAS-WFB Polyurethane Wheels

1100

125

Polyurethane

Swivel
with
Wheel
Face
Brake

Brake

Muvtons premium polyurethane treaded wheels 93° ±3° Shore A, firmly bonded to precision machined cast iron cores offer low rolling resistance, smooth & noiseless running are non-marking and floor protective. These wheels possess high abrasion & cut resistance and are resistant to tearing. Tested & guaranteed against bond failures. Wheel bearing options : Sealed precision ball bearings, tapered roller bearings or roller bearings, color, light brown. Temperature range : -20°C to +85°C. Tread options: Anti static : Conductive wheels are available.

Send Us Product Enquiry for a Quick Response

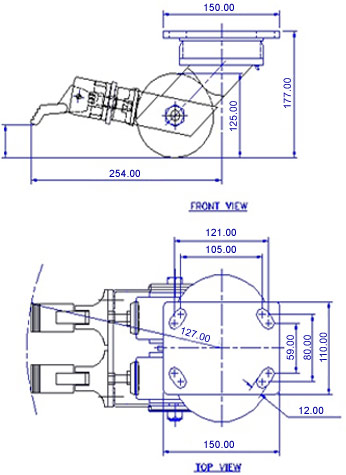

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

93° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

125

Tread Width(mm)

50 x 2

Load Capacity(kg)

1100

Wheel Bearing

Ball Bearing

Overall Height(mm)

177

Swivel Radius(mm)

127

Swivel Radius WFB(mm)

254

Top Plate(mm)

150 x 110

Bolt Hole Centers

105 x 80 to 121/59

Non Marking

Yes

Heat Resistant

Yes

Noise Reduction

Yes
