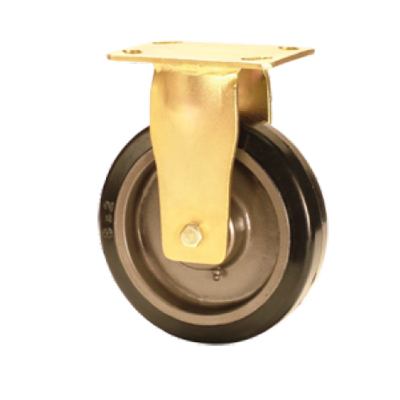

GRDE-102R-SEB

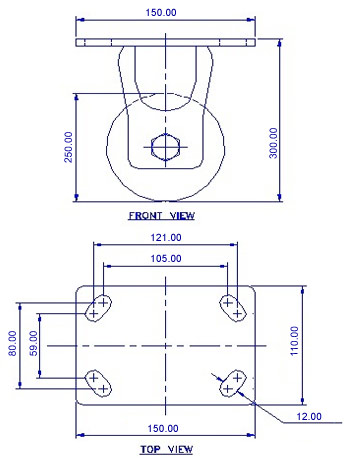

CAD Download

Product Info (PDF)

ZOOM

500

250

Elastic
Rubber

Rigid
Castor

none

Muvtons black elastic rubber tyred wheels firmly chemically bonded to precision machined cast iron cores. Highly resilient 75° ±5° Shore A rubber provides very smooth and silent running. Can be used for power towing applications by suitably de-rating the load capacity. Wheel bearing options: Sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range : -20°C +75°C Tread Options: Anti Static, conductive and oil resistant wheels are available.

Send Us Product Enquiry for a Quick Response

Technical Data

Castor Type

Rigid Castor without Brake

Wheel Material

Elastic Rubber

Wheel Hardness

75° ± 5° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

250

Tread Width(mm)

Load Capacity(kg)

500

Wheel Bearing

Ball Bearing

Overall Height(mm)

300

Top Plate(mm)

150 x 110

Bolt Hole Dia(mm)

105 x 80 to 121/59

Non Marking

Heat Resistant

Yes

Noise Reduction

Yes
