Home » Castors By Series » GRDE Series » GRDE Castors with DF Series Drop Forged Wheels » GRDE-52S-DF-TL

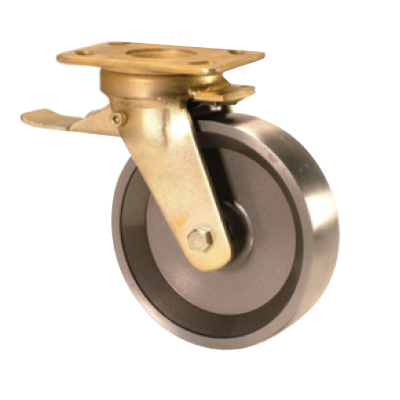

GRDE-52S-DF-TL

1000

125

Alloy
Steel

Swivel
with
Total
Lock

Brake

Muvtons drop forged wheels are hot forged from alloy steels and can be used in the roughest of applications on the poorest of floors. These are virtually in-destructible within their capacity range. Tread faces are fully machined for easy maneuvrability - these wheels offer high abrasion and oil resistance. Wheel bearing options: sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range:-100° c to +600° c.

Send Us Product Enquiry for a Quick Response

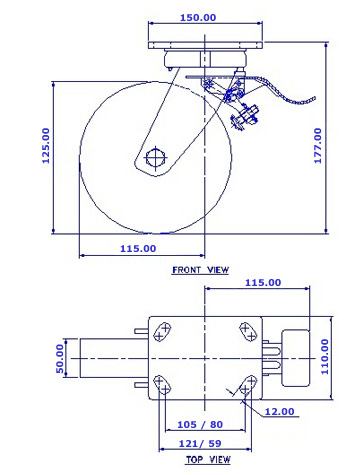

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Alloy Steel

Wheel Dia(mm)

125

Tread Width(mm)

Load Capacity(kg)

1000

Wheel Bearing

Ball Bearing

Overall Height(mm)

177

Swivel Radius(mm)

115

Swivel Radius TL(mm)

115

Top Plate(mm)

150 x 110

Bolt Hole Centers

105 x 80 to 121/59

Non Marking

Heat Resistant

Yes

Noise Reduction
