Home » Castors By Series » GRDE Series » GRDE Castors with SZS Series Soft Polyurethane Wheels » GRDE-52S-SZS-TL

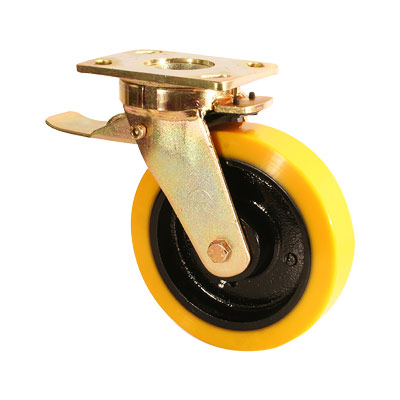

GRDE-52S-SZS-TL

350

125

Polyurethane

Swivel
with
Total
Lock

Brake

Muvtons premium soft durometer polyurethane treaded wheels 83° ±3° shore a, firmly bonded to precision machined cast iron cores. These wheels have been designed to response to noise problems and allow loaded to be cushioned. The use of lively polyurethane materials allows these wheels to flex & roll over debris and obstacies without picking up objects. They are non marking and floor protective. Tested & guaranteed against bond failures. Wheel bearing options : sealed precision ball bearings, tapered roller bearings or roller bearings. Temperature range; -20°c to +85°c. Thread options : anti static : conductive wheels are available.

Send Us Product Enquiry for a Quick Response

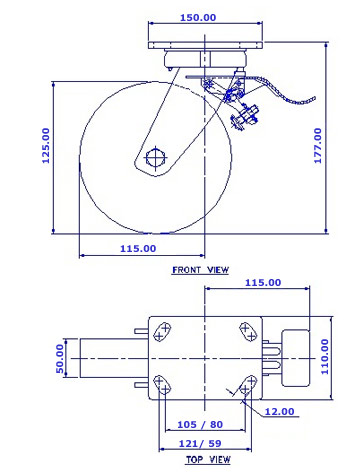

Technical Data

Castor Type

Swivel Castor with Brake

Wheel Material

Polyurethane

Wheel Hardness

83° ± 3° Shore A

Wheel Center

Cast Iron

Wheel Dia(mm)

125

Tread Width(mm)

Load Capacity(kg)

350

Wheel Bearing

Ball Bearing

Overall Height(mm)

177

Swivel Radius(mm)

115

Swivel Radius TL(mm)

115

Top Plate(mm)

150 x 110

Bolt Hole Dia(mm)

105 x 80 to 121/59

Non Marking

yes

Heat Resistant

Yes

Noise Reduction

yes
